-40...85°C

The WIKA high-quality MA diaphragm pressure switch is developed for safety-critical applications. The high quality of the WIKA MA diaphragm pressure switch is following ISO 9001, which ensures reliable monitoring of your plant. In production, the switches are traced by quality assurance software at every step and subsequently are 100 % tested. All wetted materials are from stainless steel as a standard. To ensure as flexible operation as possible, the pressure switches are fitted with micro switches, which enable the switching of an electrical load of up to AC 250 V, 20 A directly. For lower switching power ratings, such as for PLC applications, argon gas-filled micro switches with gold-plated contacts can be selected as an option. For applications with special requirements on the wetted parts, versions with materials from PTFE, Monel or Hastelloy are available. By using a diaphragm measuring system, the model MA pressure switch is extremely robust and guarantees optimal operating characteristics. For setting ranges from 4 … 40 bar a piston replaces or completes the diaphragm as a measuring element. The wetted parts of this variant from stainless steel are particularly suited for liquid media.

The WIKA high-quality BA/BAX bourdon tube pressure switch is developed for safety-critical applications. The high quality of the WIKA BA/BAX bourdon tube pressure switch is following ISO 9001, which ensures reliable monitoring of your plant. In production, the switches are traced by quality assurance software at every step and subsequently are 100 % tested. All wetted materials are from stainless steel as a standard. By using a bourdon tube measuring system, the WIKA BAX and BA pressure switch is extremely robust and guarantees optimal operating characteristics. To ensure as flexible operation as possible, the pressure switches are fitted with micro switches, which enable the switching of an electrical load of up to AC 250 V, 20 A directly. For lower switching power ratings, such as for PLC applications, argon gas-filled micro switches with gold-plated contacts can be selected as an option. For applications with special requirements on the wetted parts, versions with materials from PTFE, Monel or Hastelloy are available. By using a diaphragm measuring system, the WIKA BA/BAX bourdon tube pressure switch is extremely robust and guarantees optimal operating characteristics. For setting ranges from 4 … 40 bar a piston replaces or completes the diaphragm as a measuring element. The wetted parts of this variant from stainless steel are particularly suited for liquid media.

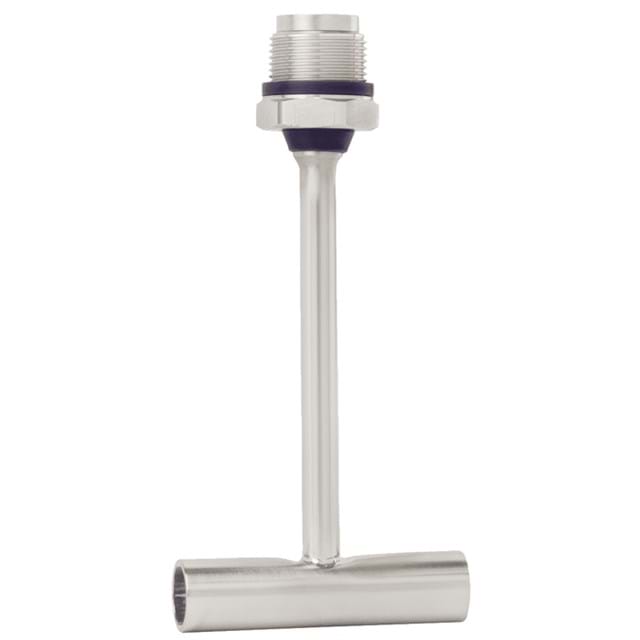

The patented WIKA TW61 thermowell is used to adapt a WIKAl TR21-B or WIKA TR22-B resistance thermometer to the process and to protect the sensor from harsh process conditions. To integrate it into the process, the thermowell is directly orbitally-welded into a pipeline. The connection ends are smooth and prepared for orbital welding. The measuring insert can be withdrawn together with the connection head. This makes it possible to calibrate the thermometer with the entire measuring chain, on-site, without disconnecting the electrical connections. In addition, this avoids having to open the process, and thus the risk of contamination is minimised. In combination with a model TR22-B resistance thermometer, the rotatable threaded connection of the connection head or the display can be loosened and turned to the desired orientation.
