Butterfly Valves
21 items
AS Series: PFA Lined Split Body Butterfly Valve
ASPFALSBBV
AS Series butterfly valves are PFA lined (encapsulated) for superior corrosion resistance against severe chemicals and corrosive services. Bi-directional, bubble tight shut-off Rated to 150 psi Standard 17-4PH® stem Live-loaded packing Blow out proof stem 2-piece wafer of lug bodies are epoxy coated Resilient back up liner Multiple safety seals Operating Temp: 20°F to 335°F Sizes 2-12 (CF for 14-24) These valves hold CRNs (Canadian Registration Numbers). Use the search bar on our site to access the CRN certificates; search CRN.
- USD
Butterfly Valve Tee Assembly
BVTAb
A-T Controls’ Butterfly Valve Tee Assemblies provide a cost-effective, alternative to a 3-way valve solution. Available for lug style butterfly valves, these unique tee assemblies can be customized to fit your application. Consult factory for valve selction and assembly options. Sizes 2 - 36 Lug style Ductile Iron body Various seat options for special applications
- USD
ES Series: A-T Resilient Seated Butterfly Valves
ESATRSBV
A-T Controls Butterfly Valves cover a wide range of industries from General Purpose to Chemical, Food and Beverage, Pulp and Paper, Waste Water applications and more. The product line features many choices of seat, disc and stem materials which enable you to address a wide variety of applications and media. A-T Controls Butterfly Valves are designed to comply with MSS-SP-67 and API-609 and are tested to comply with API-598 standards. They are compatible with ANSI 125/150 flanges. Square stem, Sizes up to 24 Body material is Ductile Iron (ESP) or Stainless Steel (ES) Body Wafer or Lug style, ductile iron or stainless steel Disc Nickle Plated Ductile Iron, CF8M Stainless Steel (polished option), Aluminum Bronze, Nylon Coated Ductile Iron, Undercut CF8M SST (polished option), Undercut Aluminum Bronze, and others may be available on request Seat EPDM, Buna-N, Food grade EPDM, Viton®, PTFE Stem 431 SST standard (431 SST, 17-4PH and others available) Stem Bushing FRP (Brass available)
- USD
High Performance Butterfly: POWER-SEAL Series
HPBPowerSeal
POWER-SEAL High Performance Butterfly Valves ANSI/ASME Class 150 and 300 PS and P1S Series - Soft Seat design Soft seat for bubble-tight shutoff of general purpose applications. (PS soft seat material is RTFE. P1S soft seat material is G2TFE). PF and P1F Series - Firesafe seat design Primary soft seat for bubble-tight shutoff backed up by secondary 316L SST firesafe seat. Secondary firesafe seat provides Class V shutoff when primary soft seat is compromised in a fire event. (PF soft seat material is RTFE/316L SST. P1F soft seat material is G2TFE/316L SST). PM and P1M Series - Metal seat design for specialized applications 316L SST seat for Class V shutoff of high temperature applications. Standard disc with this series is 316 SST with HCr. PH and P1H Series - Metal seat design for high temperature Inconel 625 seat and 316 SST with Stellite disc is recommended for extreme temperatures. Features and Benefits Available inventory includes sizes 2”-36”. Larger sizes available upon request Standard body materials are 316 SST or WCB. Application specific options include: Alloy 20, Monel, CD3MN, Hastelloy C-276, Inconel 625, Aluminum Bronze, LCB and others. Refer to catalog for standard seat materials for each series. Application specific seat materials include: 50/50 STFE, PTFE, TFM-1600 and Inconel 625. Soft and Firesafe seat designs offer bubble-tight, bi-directional shutoff to full ANSI/ASME Class 150 and 300 standards. Metal seat design offers Class V shutoff. Blow out proof stem design Live Loaded Packing Application Specific Stem Packing Internally Cast Travel Stop These valves hold CRNs (Canadian Registration Numbers). Use the search bar on our site to access the CRN certificates; search CRN.
- USD
High Performance Valves
HPV
Setpoint Integrated Solutions has a variety of Butterfly Valves available across our 13 branch locations throughout the Gulf South. Contact us today for a solution for your application.
- USD
LS Series: A-T Resilient Seated Butterfly Valves
LSATRSBV
LS Series: Lined Butterfly Valve PFA lined (encapsulated) disc and PTFE seat for superior corrosion resistance against severe chemicals and corrosive services. Manual and Automated Butterfly Valves Lug or Wafer body, ANSI 125/150 flanges Bi-directional bubble tight shutoff for full pressure differential ASTM A395 DI and A351 CF8M body materials Square stems and ISO 5211 mounting pad for direct mounting
- USD
Lined Valves
LV
Many different types of seat materials are available, including Buna (NBR), EPDM, Viton (FKM), PTFE, natural rubber or neoprene. Setpoint Integrated Solutions has a variety off Butterfly Valves available across our 13 branch locations throughout the Gulf South. Contact us today for a solution for your application.
- USD

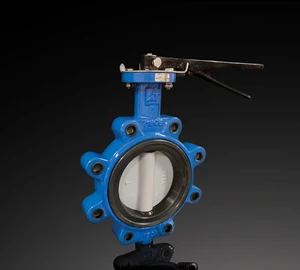

NS Series Butterfly Valves | NSF 61 & 372 Rated
NSBV61
NSF 61 and 372 certified and Dead-End Service, Manual and Automated Butterfly Valves, Lug or Wafer body, ANSI 125/150 flanges (NS, NSP) A-T Controls’ NS series butterfly valves are certified to meet the requirements of NSF 61 (Drinking Water System Components- Health Affects) and NSF 372 (Drinking Water System Components- Lead Content). This means that NS Series valves are certified for use (by Underwriters Laboratory) in water treatment, water purification, potable water, and water distribution systems and conforms with North American lead content requirements for “lead-free” plumbing. Bi-directional, bubble tight shutoff for full pressure differential Vulcanized Molded rubber seat design ASTM A395 DI and A351 CF8M body materials Multiple seat and disc materials available Square stems and ISO 5211 mounting pad for direct mounting These valves hold CRNs (Canadian Registration Numbers). Use the search bar on our site to access the CRN certificates; search CRN.
- USD
OC/OS Series: A-T Resilient Seated Butterfly Valves
OCOSATRSBV
A-T Controls Butterfly Valves cover a wide range of industries from General Purpose to Chemical, Food and Beverage, Pulp and Paper, Waste Water applications and more. The product line features many choices of seat, disc and stem materials which enable you to address a wide variety of applications and media. A-T Controls Butterfly Valves are designed to comply with MSS-SP-67 and API-609 and are tested to comply with API-598 standards. They are compatible with ANSI 125/150 flanges. These valves hold CRNs (Canadian Registration Numbers). Use the search bar on our site to access the CRN certificates; search CRN. OS and OSB Series Square stem, Sizes up to 12 Body material is Ductile Iron (OSB) or Stainless Steel (OS) OC and OCB Series DD stem, Sizes 14-24 | Keyed Stem, Sizes 30-48 Body material is Ductile Iron (OCB) or Stainless Steel (OC) Trim Options Body Wafer or Lug style, ductile iron or stainless steel Disc Nickle Plated Ductile Iron, 316 Stainless Steel (polished option), Aluminum Bronze, Nylon Coated Ductile Iron, Undercut 316 SST (polished option), Undercut Aluminum Bronze, and others may be available on request Seat EPDM, Buna-N, Food grade EPDM, High temp EPDM, Viton®, PTFE Stem 420 SST standard (431 SST, 17-4PH and others available) Stem Bushing PTFE (Lubricated Bronze available) Stem Seal Buna (Viton® available)
- USD
