Valve Automation & Actuators
14 items
180º Pneumatic Rack & Pinion Actuators
180PRPA
With torques from 370 in-lbs to 9300 in-lbs, the TRIAC® 180-AL Series Actuators are ideal for multi-port (3, 4, 5 way) valves, ball valves, 3-way plug valves, conveyor diverters, bulk material diverters and any other application requiring reliable pneumatic torque over a 180º rotation. The units feature hard anodized aluminum housings, die cast aluminum pistons with Delrin® wear pads and nitrile seals. As in our famous TRIAC® 90º actuators, the 180º units feature NAMUR accessory dimensions and ISO 5211 mounting. 370 in-lbs. to 9300 in-lbs. Hard-anodized aluminum housings Die cast aluminum pistons Delrin wear pads and nitrile seals Namur accessory dimensions ISO5211 mounting Options and Accessories 120° adjustable stops (for diverters) 3-position control circuits Complete the package with a solenoid valve, limit Switch, positioner, filter regulator, or mounting hardware kit
- USD
3R/2R Series: Rack & Pinion Actuators
3R2RRPA
TRIAC® pneumatic rack and pinion actuators are designed and manufactured to provide the highest cycle-life on the market. We can accessorize them to accomplish virtually any control requirement. They are available with various mounting dimension configurations and span eleven models for appropriate torque compatibility. Standard working temperature -5ºF to 175ºF Low and high temperature options Maximum working pressure 150 psig Operating media: clean, dry air, non-corrosive gas or light hydraulic oil Air supply 40 psi - 150 psi Rotation 100º Double Acting or Spring Return Torques to 56,000 in. lbs. Common end caps for DA and SR Substantial pinion bearings mean high cycle life Corrosion resistant hard-anodized aluminum finish Nickel Plated and PTFE Infused Options Standard accessory mounting; NAMUR, VDI/VDE 3845 Standard valve mounting pad: ISO 5211 (models TR/3R10 - 2R/3R3500) Wide base for direct mount to many butterfly valves Custom Mounting configurations available in quantity Permanently lubricated units Each unit serialized Our extensive inventory and engineering capabilities allow us to respond to your needs with flexibility. We pride ourselves on exceeding customer expectations. Contact us for application assistance.
- USD
BFS Series: Battery Backup Actuators
BFSBBA
The TRIAC® BFS Series battery failsafe electric actuator features a sealed lead-acid (VRLA) battery with capacity for five cycles following loss of power. The battery recharges automatically when re-energized. The actuator is configurable to either fail close or fail open on loss of power supply. Battery Backup Fail-safe Electric Actuators for Emergency Shutdown Applications Torques up to 2640 in-lbs Corrosion resistant housing and enclosure Type 4, 4X and 6, IP65 110/120 VAC/1PH standard motor, or 220/240 VAC/1PH motor option Sealed, maintenance-free, rechargeable battery Manual override with handwheel
- USD
KE Series: Worm Drive Weather Proof Actuator
KEWDWPA
The TRIAC® KE Series electric actuators are the perfect match for small resilient or high-performance butterfly valves and dampers because of the self-locking worm drive and low profile that makes them ideal for tight spaces. The KE Series actuators are used to control rotary valves, such as butterfly valves, ball valves, plug valves, etc. Widely used in applications such as petroleum, chemical, water treatment, ship, paper, power stations, heating supply, building automation, light industry, etc. Standard Features: Convex lens visual position indicator makes it easier to observe without water collecting on the surface of the indicator Anti-condensation heater and thermostat Two auxiliary limit switches Self-locking gear train Manual override with wrench Available motor voltages: 12VDC, 24VDC, 120VAC and 220VAC Optional 4-20mA and 0-10 VDC proportional control 8000 cycles @ 50% duty cycle
- USD
Stainless Steel Rack & Pinion Actuators (S2 Series)
S2SSRPA
TRIAC® Series S2 Stainless Steel Rack and Pinion Actuators offer an economical solution to harsh chemical environments and the corrosion resistant requirements of the pharmaceutical, food, beverage, pulp and paper, and petrochemical industries. Contact us for application assistance. 316 Stainless Steel body, pinion and pistons Dual Travel Stops, providing adjustment in both open and closed positions Direct Mount ISO5211 mounting dimensions NAMUR accessory mounting Electropolish finish Double acting and spring return Standard working temperature -40ºF to 175ºF Maximum working pressure 150 psig
- USD

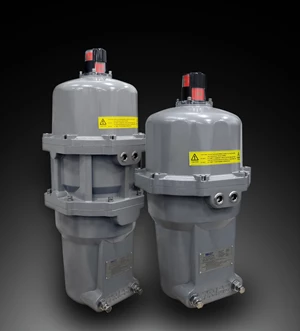

SRX Series: Spring Return Electric Actuators
SRXSPEA
Spring Return Electric Actuators are used in critical processes to return quarter-turn valves to their safe position even with the absence of power. Available in 300, 600, 1200, 1800, and 3200 in-lb units in both on/off and modulating. Explosion Proof, Class I, Division 1, Groups C and D, T4 Design Weatherproof, Type 4, 4x
- USD
SY Series: Small Steel Scotch Yoke Actuator
SYSSSYA
Steel for Outstanding Corrosion Protection Pneumatic Actuators for Quarter-Turn Valves and Dampers Torques from 800 - 12,370 In-lbs. Double Acting Spring Return TRIAC® SY Series scotch yoke actuators by A-T Controls offer “workhorse” cycle operation. These rugged multi-purpose actuators are the compliment to the already trusted THD Series. The compact design offers options to address your quarter turn torque requirements. The SY Series is a reliable way to automate quarter turn valves and provides options for accessory mounting and manual override operation. The design is modular and allows for easy rotation choices. Simply flip the actuator to achieve clockwise (CW) or counterclockwise (CCW) operation. This design features a supported scotch yoke which is stabilized by significant body bearings for minimal wear. Various spring and pressure options allow you to achieve the torque balance you need. Increased efficiencies in this design give you the most actuator for the money. For many applications, steel is just better. These small steel scotch yoke actuators, compared to aluminum, provide better corrosion resistance in harsh environments such as marine salt water and petro-chemical applications. Additionally, surface coatings adhere better than aluminum. When your application calls for rugged and reliable valve actuation, rely on the TRIAC® SY Series
- USD
THD Series: Heavy Duty Scotch Yoke Actuator
THDHDSYA
Heavy Duty Pneumatic Actuators for Quarter-Turn Valves and Dampers Torques to 1,600,000 in. lbs. Available in Double Acting and Spring Return Travel adjustments ±8º for clockwise and counter-clockwise strokes Nitrile rubber piston O-rings offer excellent sealing and wear. Optional low and high temperature seals and lube are available RTFE Guide Band supports piston while providing smooth operation and extended life Extra-large, strong piston rod for long life and torque transmission NAMUR accessory mounting pads for standardized mounting of limit switches, positioners, etc. Ductile iron center body Modular design allows for installing power groups and spring cartridges so that actuators may be set up for different air pressures and for Fail Clockwise and Fail Counter-clockwise Rugged heavy-duty steel pressure cylinders chrome plated for long wear and corrosion resistance Safe, welded spring cartridges with numerous options for a broad range of air pressure conditions Alloy steel, corrosion resistant and heat-treated springs designed and manufactured for long high cycle life Steel slide block, bronze slide bearings to minimize friction and provide long cycle life (Not available on the S09 pressure group) Visual position indicator The TRIAC® heavy duty scotch yoke actuator product line offers a broad range of torques to 1,600,000 in-lbs. The THD series is designed to operate ball, butterfly, plug valves, dampers or any device that requires a quarter-turn movement for on-off or throttling service. Our standard offering is the symmetrical design yoke that delivers maximum torque at both ends of the 90º cycle. The square slide bearing with guide bar provides high cycle life and smooth stroke while minimizing wear points. Also available is a canted yoke design, which is ideal for butterfly valves in sizes C11 and larger. As with all TRIAC® actuators, our THD series is accompanied by a complete line of accessories, including jackscrew and hydraulic overrides, limit switches, solenoids and positioners. A-T Controls also offers complete mounting hardware to integrate our actuators with any quarter-turn valve, damper or louver.
- USD
WE/XE/SE Series: Weather Proof, Explosion Proof, & Submersible Electric Actuators
WEXESEEA
WE Series (weather-proof) and XE Series (explosion-proof) electric actuators are specially designed for quarter-turn operating applications such as Ball valves, Butterfly valves, Plug valves, Dampers and similar valve automation usages. WE Weather-proof - CSA Approved; TYPE 4 and 4X; Torques 350 - 80,000 In-lbs. XE Explosion-proof - ATEX/IECEx Certified Ex d IIB T4 Gb, IP67; Torques 500 - 25,900 In-Lbs. SE Submersible - Type 4, 4X, and 6; IP68 (10m 72hr) Models to Note: The WE-350 model is speci?cally designed to operate small size ball valves (1” and less), dampers and other quarter-turn devices. The WE-500 and XE-500 electric actuators have a compact design, ideal for use with small ball valves (2” and smaller), dampers and other quarter-turn devices. They are compact and light due to high grade aluminum alloy housing. The hard-anodizing finish on the enclosure with polyester powder coating on the exterior surface equips this actuator with high resistance to corrosion. This actuator is the clear choice when a compact, efficient electric actuator is required!
- USD
Browse our extensive line of valve actuator and automation solutions from A-T Controls, a Vytl Controls company. Our line-up includes electric actuators, floor mounted damper drives, heavy duty/scotch yoke actuators and rack and pinion pneumatic actuators.
Our range of electric actuators feature weatherproof, explosion-proof and submersible models with torques ranging from 350-80,000 in-lbs. These models also offer rechargeable battery backup, manual override, torque switching, auxiliary limit switches and feedback control.
Our pneumatic actuators include rack and pinion and scotch yoke with torques ranging from 370-1,600,000 in-lbs. These models offer a long cycle life, corrosion-resistant housings, modular mechanical design, NAMUR accessory mounting and standardized ISO 5211 mounting options.
Shop now for our valve automation and actuator solutions that integrate seamlessly with valve systems in critical industries such as petrochemical, marine, water treatment, power, HVAC and process control.
